分類: 文房具フォルダメーカー
- 様々な機能性材料のこの用途:紙、PVC、PP等が挙げられます。
- 主な機能は次のとおり自動エッジ担体材料は、スリット又は自動ヘッダマーク、金型パンチング、スタンピング又は自動セグメンテーションマーク自動入場フォントテーブルなどの様々な種類のスタンピングトリミングすることができます。
- 機械長自動コンピュータ数値制御サーボモータ、簡単な操作、製品仕様ㄧアクチュエータ、美的品質。
- 製造工程は、原料の全体積、自動エッジ、トリミング、スタンピング、打ち抜き、切断、自動計数、鉱業の自動完了から、マニュアル指導なしで、製造コストを節約し、生産性を向上させる、競争力を向上させます。
- マシンは非常に精密な打ち抜き位置を有する様々な耐久性のある高精度の打抜き金型故障率、及びハイテク電子制御を選択することができ、容易に移動させます。
- このマシンは、制御および監視システムの様々な高品質、高効率の部品を使用していますので、動作に問題はありません。原材料の無駄を回避し、機械を保護することができ、自動停止し、警戒する可能性があります。
- 主な仕様:A4、A3またはその他の仕様。

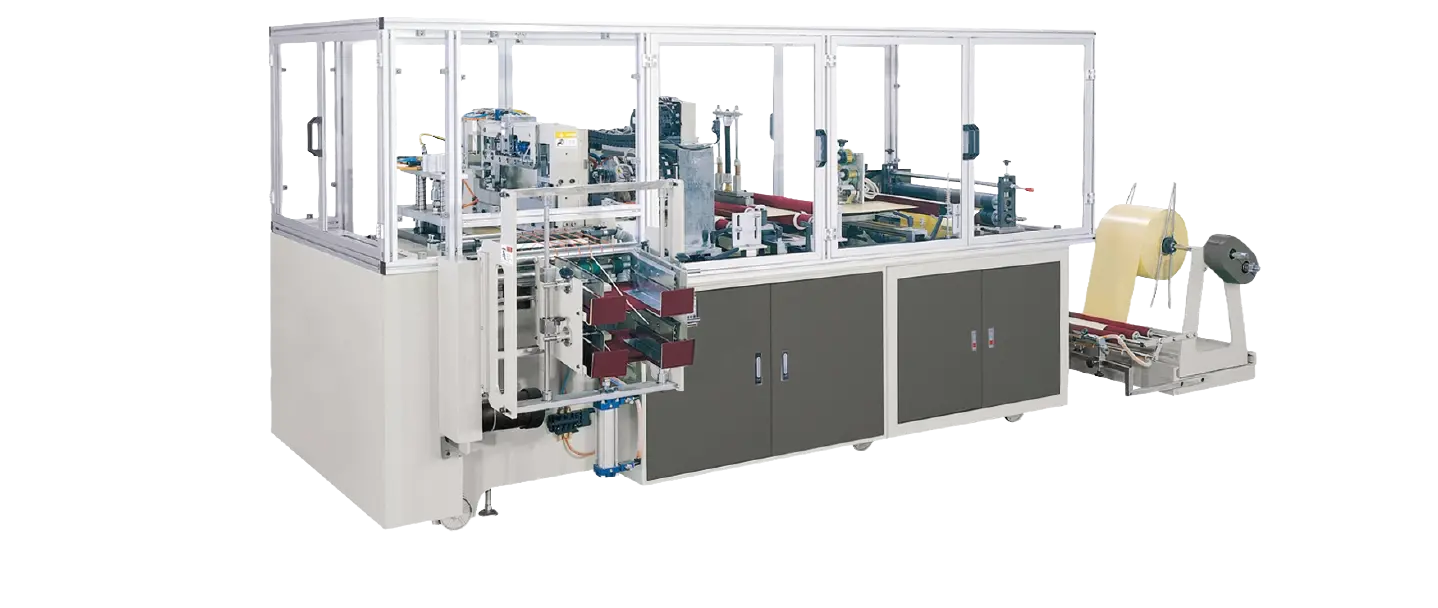

Model | MGA-56-700 |
Feed material | pp in roll form |
Effective cutting width | 150 - 364 mm |
Effective cutting length | 150 - 295 mm |
Single layer film thickness | 0.06 - 0.20 mm |
Output | 70 - 100 pcs/min |
Machine dimension | 4,350 (L) × 2,100 (W) × 1,500 (H) mm |
Machine weight | 2,300 kg |
Required power | 7.2 kw |
Optional equipment | (1) Electronic E.P.C : 1 (2) 3'' unwinding air shaft : 1 (3) Printing Sensor (Photo Cell) : 1 (4) Printing Wheels(depend on the design) : 1 pc (5) Two holes punching mold (A5) : 1 (6) Auto packaging system : 1 |

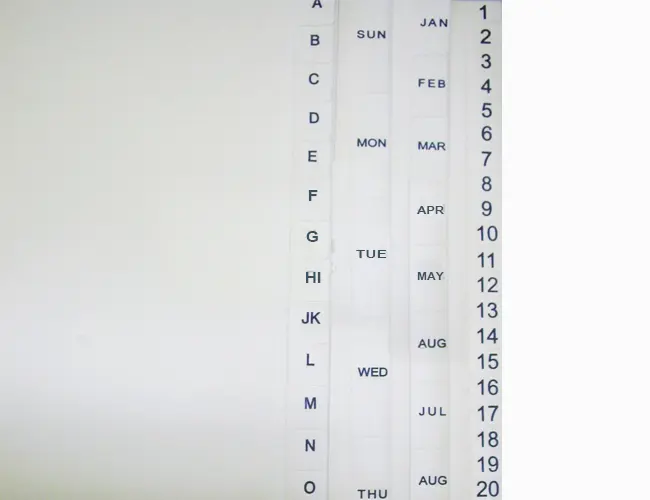

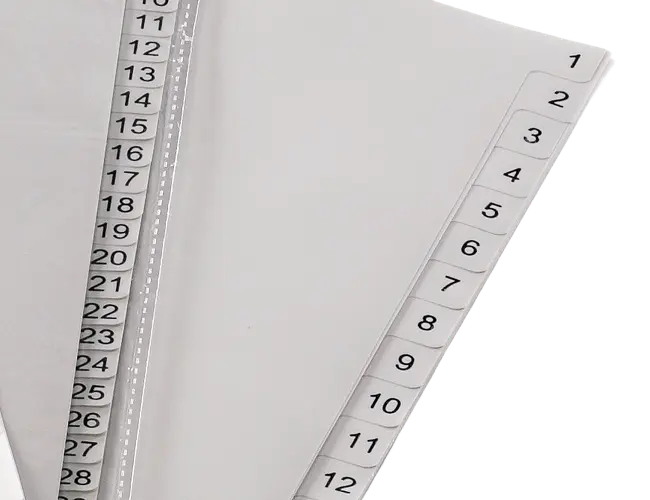

*Index Tab sample : Please provide the sample to us. The max length of each character : 13mm. | |
Remarks | As we continuously keep working on research and improvement, we preserve the right to change all of the specifications, design and characteristics on this catalogue without notice. |
