Air Cooling Type Recycling & Pelleting Machine

分類: PPフィルムダイ押出およびブローフィルムチューブ

国: 台湾

電話番号: 886-6-5783420

ファックス: 886-6-5783347

連絡先: Chris Chang

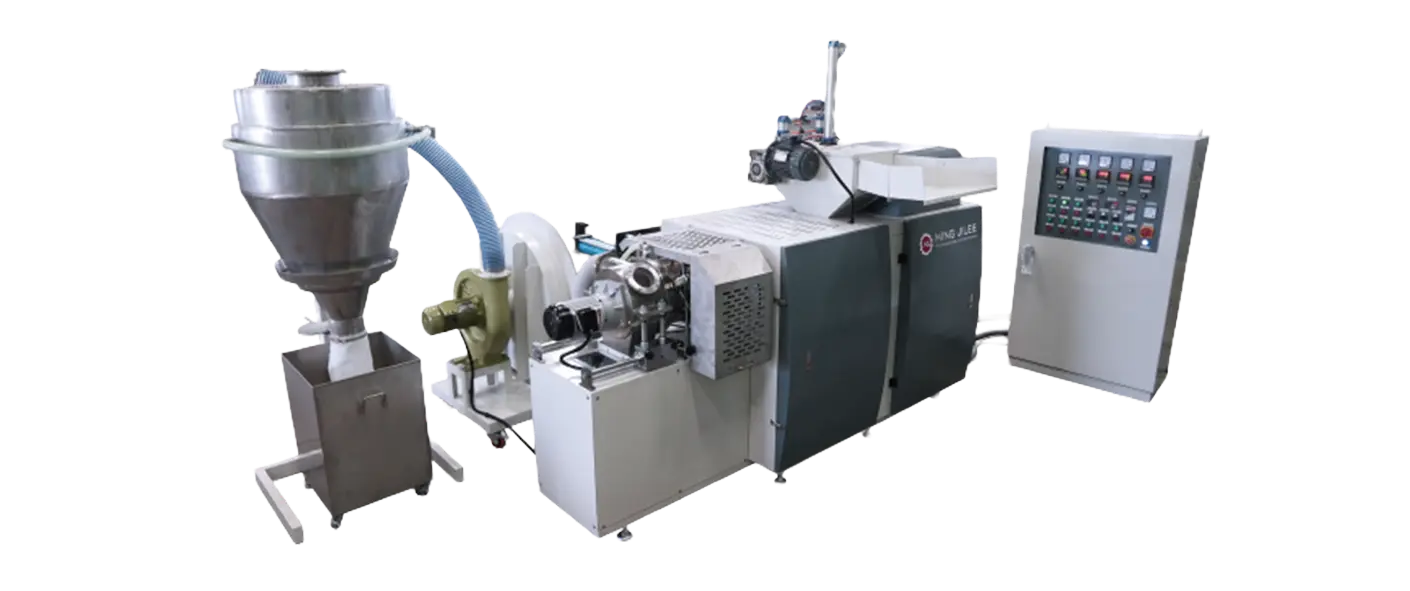

This machine is suitable for the recycling treatment for HDPE, LDPE and LLDPE waste material.
Waste material may directly be pitched into the inlet with-out preceding smash treatment in a crusher. The special designed construction will directly smash waste material and do pelleting.
It is easy for operation, just need to preset the required temperature in advance for each heater as per the character of material and then to await the heaters to warm up. When all of temperature gauges reach the preset, just wait for another 20~30 minutes and then to start operation.
This machine equips with a hydraulic screen exchanging device to enable the exchanging action be easy and quick.
Vision window is installed on the wall of barrel which will enable the operator to immediately observe the pelleting operation inside.
During the pelleting operation, size of granules may be controlled directly by adjusting the inverter.
This machine equips with IN-FEED pneumatic pressing cylinder for better production capacity.

Model	MGB-RP-120
Applicable resin	LDPE / LLDPE / HDPE Waste Film
Output	(1)LDPE / LLDPE : 50 - 60 kg/hr (2)HDPE : 40 - 50 kg/hr
Machine dimension	2,925 (L) × 2,800 (W) × 2,035 (H) mm
Machine weight	2,900 Kg
Required power	38 kw
Remarks	As we continuously keep working on research and improvement, we preserve the right to change all of the specifications, design and characteristics on this catalogue without notice.
