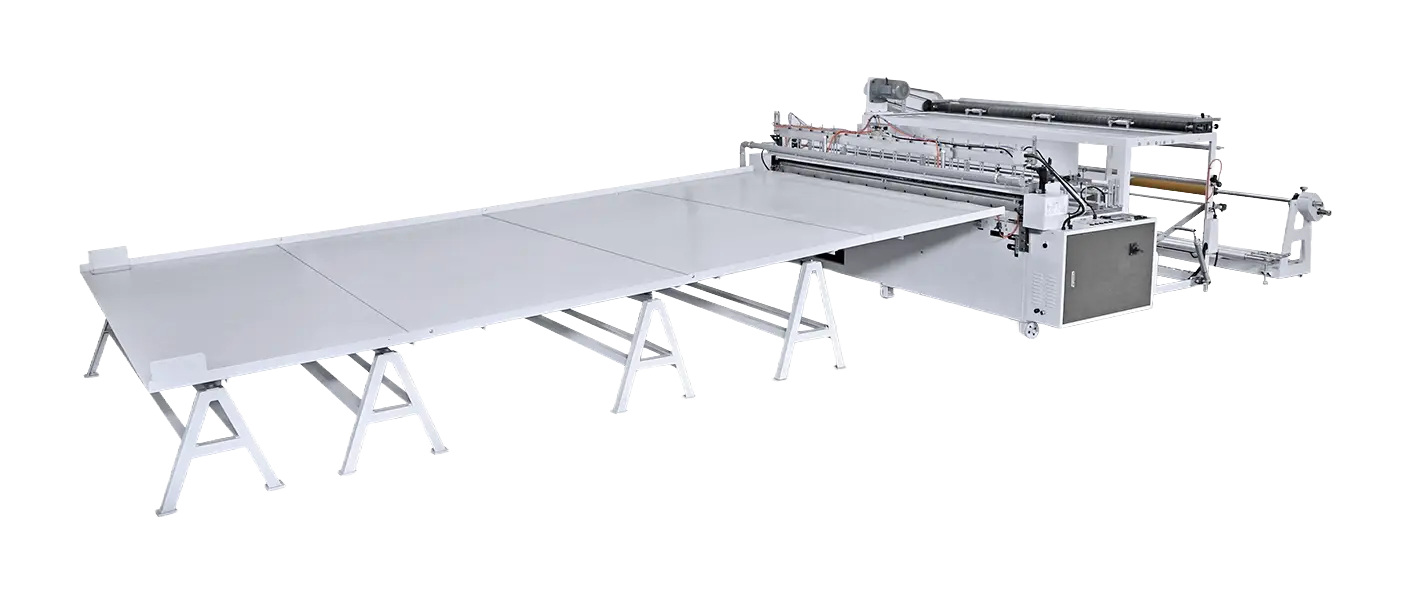

Heavy Duty Bottom Wire Sealing Machine(with flying knife cutter)

分類: シーリングおよび切断機

MING JILEE ENTERPRISE CO., LTD.

国: 台湾

電話番号: 886-6-5783420

ファックス: 886-6-5783347

連絡先: Chris Chang

お問い合わせ

The MGA-01 heavy duty bottom wire sealing machine with flying knife cutter is built for large-format bag production such as trash bags, industrial liners, construction sheeting, and agricultural covers, where a heated wire forms the bottom seal and a flying knife cutter trims each bag to length in one coordinated stroke. It is offered in three sizes - MGA-01-1500, MGA-01-2500, and MGA-01-2700 - to cover different bag width and length requirements.

All three models handle film up to 0.6 mm total thickness. The MGA-01-1500 produces bags up to 1,400 mm wide and 3,000 mm long at 10-75 pcs/min; the MGA-01-2500 and MGA-01-2700 handle bags up to 2,400-2,600 mm wide and 5,000 mm long at 5-25 pcs/min.

Model	MGA-01-1500	MGA-01-2500	MGA-01-2700
Max. Bag Width	1,400 mm	2,400 mm	2,600 mm
Max. Bag Length	3,000 mm	5,000 mm	5,000 mm
Total Thickness	0.6 mm	0.6 mm	0.6 mm
Output	10 - 75 pcs/min	5-25 pcs/min	5-25 pcs/min
Power Consumption	15 kw	18 kw	21 kw
N.W.	2,650 kg	3,130 kg	3,220 kg
Layout(Meter)	9(L) × 2.3(W) × 1.75(H)	9(L) × 3.3(W) × 1.75(H)	9(L) × 3.6(W) × 1.75(H)
