Name: J Shape Banana Bag Holes Punching and Sealing Machine
Brand: MING JILEE ENTERPRISE CO., LTD.

J Shape Banana Bag Holes Punching and Sealing Machine

分類: シーリングおよび切断機

MING JILEE ENTERPRISE CO., LTD.

国: 台湾

電話番号: 886-6-5783420

ファックス: 886-6-5783347

連絡先: Chris Chang

お問い合わせ

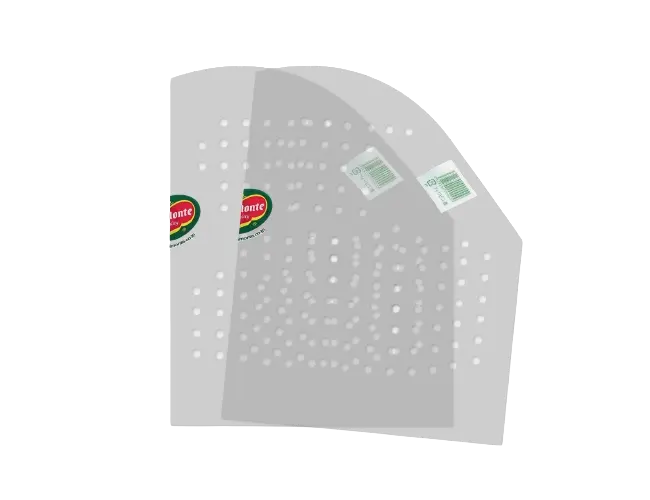

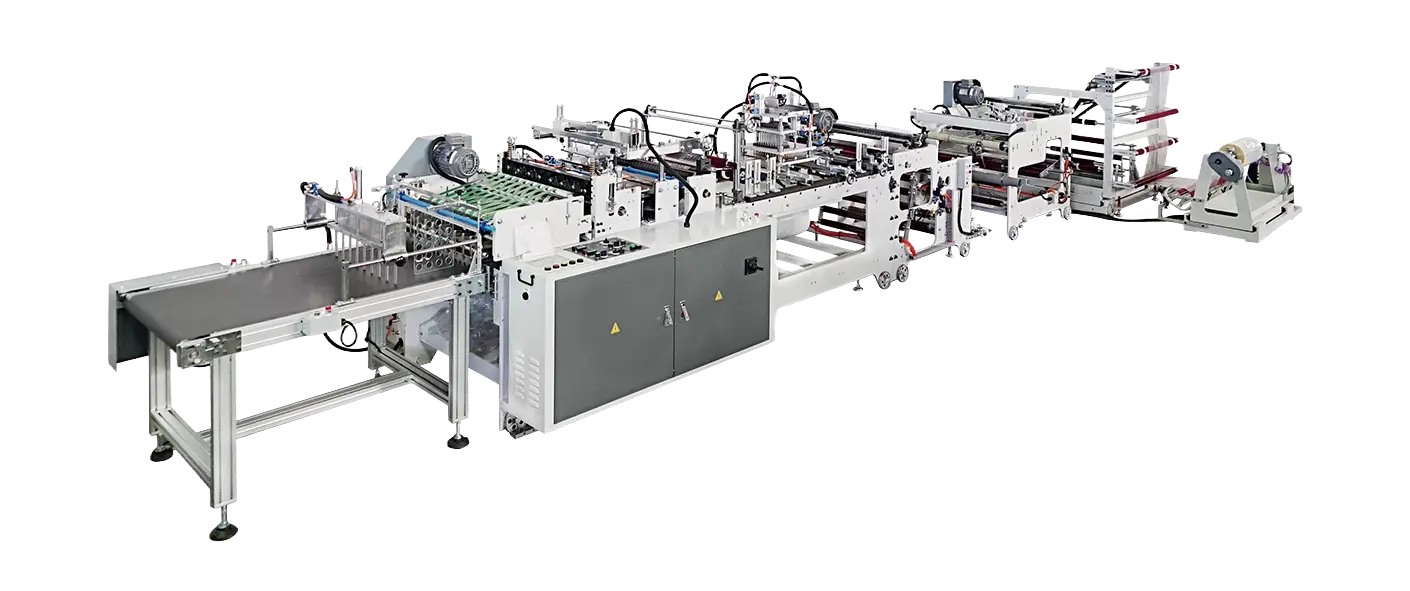

The MGA-17B-700SP (CPP) is a J-shape banana bag holes punching and sealing machine, producing banana bags with punched holes for produce packaging from P.P./P.E. single layer or tube blown film. A Japan-made servo motor gives precise size control for CPP, BOPP, PE, and J-shape banana bags, and a hydraulic edge position control system on the unwinding station supports accurate material feeding.

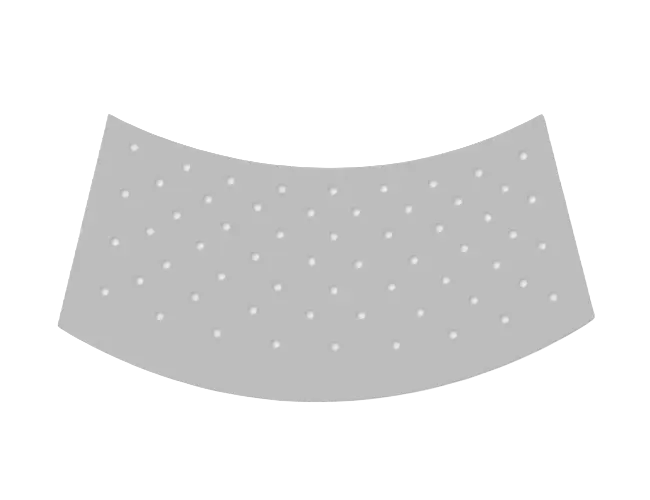

A dancing roll station maintains tension during production. A customizable punching station uses a durable, USA-made puncher to create holes directly in the banana bags, and a curved heat sealing mold cuts the bags, with waste automatically removed after cutting.

Model	MGA-17B-700SP (CPP)
Feeding Materials	P.P./P.E. Single layer or tube blown film
Single Layer Film Thinkness	0.03 - 0.12 mm
Effective Bag Width	250 - 400 mm
Effective Cutting (Feeding) Length	150 - 420 mm
Output	80 - 120 pcs/min
Machine Dimension	9,918 (L) x 2,266 (W) x 1,400 (H) mm
Machine Weight	3,264 kg
Required Power	8 kw
