分類: 溶融圧力トランスミッター

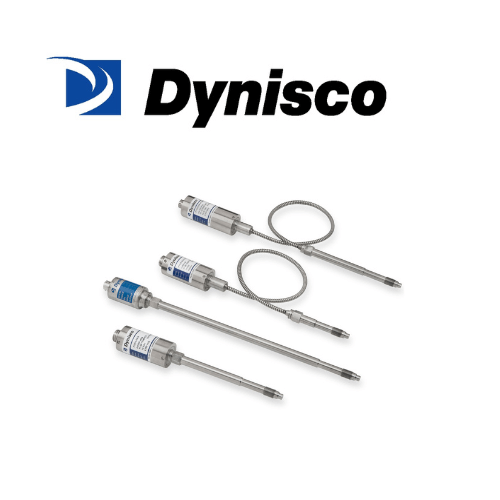

The PT46X6 transmitters provide the industry standard 0 – 10 Vdc amplified signal designed to work with DCS and PLCs, 1 – 11 Vdc outputs are also available. The PT46X6 comes equipped with zero and span pots to adapt the transmitter to process conditions. Optional thermocouple or RTD configurations are available to provide melt temperature. The PT46X6 features a 1/2-20 UNF thread for installation in standard transducer mounting holes and can be supplied with a variety of electrical connections.
The PT46X6 Series includes models PT4606, PT4626, PT4636, TPT4606, TPT4626, and TPT4636.
- Adjustable zero and span
- Accuracy better than ±0.5%
- DyMax® coated stainless steel wetted parts
- 0 – 10 Vdc and 1 – 11 Vdc outputs
- 0 – 500 to 0 – 30,000 psi
- Internal 80% shunt calibrations
