Single Line Coreless M, C, N & V Shape Folded Flat-End Garbage Bag and Table Sheet OnRoll Making Machine

分類: シーリングおよび切断機

MING JILEE ENTERPRISE CO., LTD.

国: 台湾

電話番号: 886-6-5783420

ファックス: 886-6-5783347

連絡先: Chris Chang

お問い合わせ

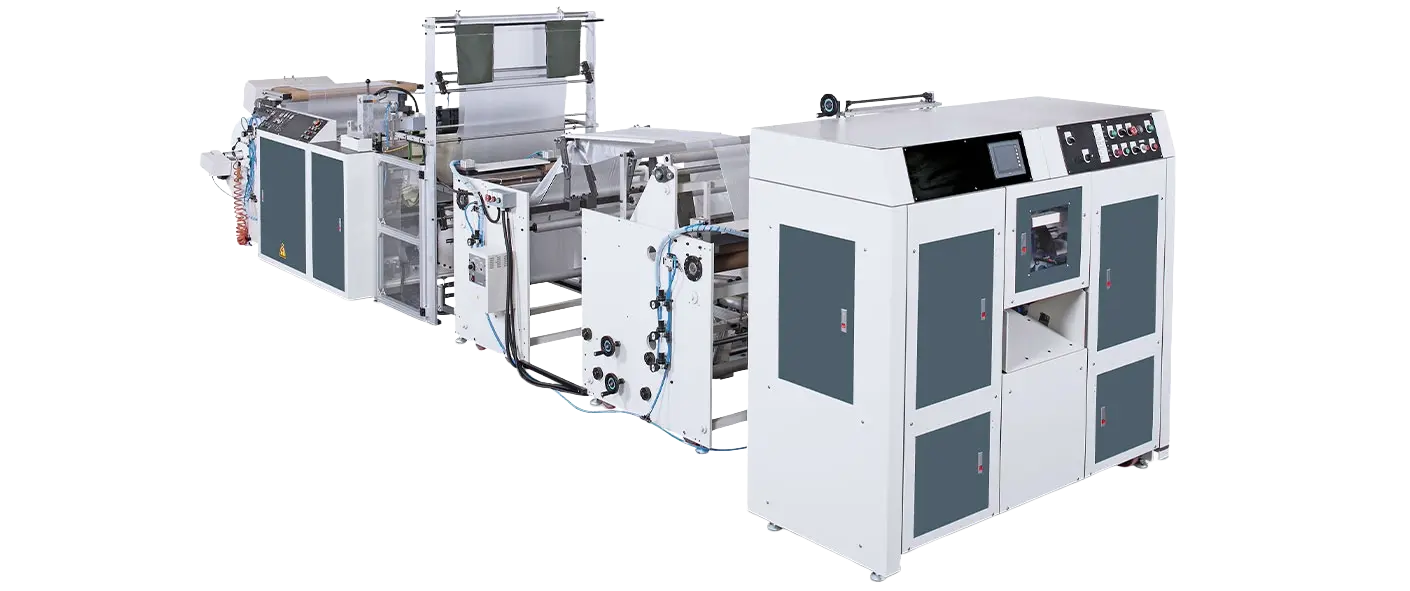

The SMNR-1000 is Ming Jilee's single line coreless machine for M, C, N and V shape folded flat-end garbage bags and table sheet on roll, folding and winding finished bags directly onto a roll without a core.

It handles bag lengths of 200- 1500 mm and bag widths of 300 - 950 mm, processing film at 0.01 - 0.08 mm thickness / layer at a max speed of 80 meters, winding rolls up to Max Ø150 cm in diameter. The line runs on a 220V, 3Phases, 50 / 60 HZ, 12KVA power supply with a 2.5 kw heater, and calls for a 5 HP air compressor (not included).

Model

SMNR-1000

Bag Lenght	200- 1500 mm	Dimensions (L x W x H)	745 x 180 x 188 cm
Bag Width	300 - 950mm	Net Weight	3,600 kg
Bag Thinkness / Layer	0.01 - 0.08 mm	Gross Weight	4,200 kg
Speed / Cycle / min	Max Speed 80 meters	Packing (L x W x H)	Machine 276 x 162 x 146 cm
Heater	2.5 kw		Folder 210 x 130 x 133 cm
Power	220V. 3Phases, 50 / 60 HZ, 12KVA		Rewinder 140 x 182 x 170 cm
Dia of bag roll	Max Ø150 cm	Air Compressor	5 HP (Not Included)
