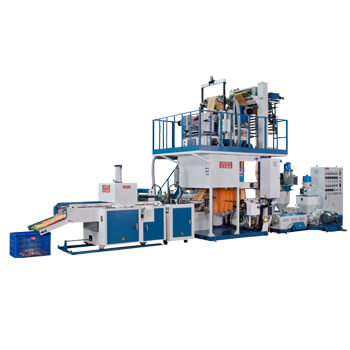

The JIT-45D is the 2-Color T-shirt Bag Making Line in JANDI'S JIT series. Rather than a stand-alone bag machine, a JIT line links blown film extrusion, printing and bag making into one in-line process, so that resin enters at one end and finished, printed T-shirt bags leave at the other without intermediate film rolls being stored and re-handled. The 45D designation identifies the two-color printing configuration of the line.
The JIT series is offered in several configurations — mono-layer semi-automatic and full-automatic types, an ABA full-automatic type and the 2-color full-automatic type represented by the JIT-45D — so the line can be matched to the film structure and print requirement of the bag. Line composition, film width and output are configured with the buyer at quotation, and the specification table below lists the models in the series.
| Machine Name: JANDI'S T-SHIRT BAG MAKING LINE | |||||
| Model : JIT-55 | |||||
| Series : JIT-SD, JIT-MD, JIT-ST, JIT-MT | |||||
| Model No. | JIT-50 | JIT-55 | JIT-SS | JIT-SD | JIT-45D |
| Feature |
Mono-layer Semi-Auto Type |
Mono-layer Semi-Auto Type |
Mono-layer Full-Auto Type |
ABA Full-Auto Type |
2-Color Full-Auto Type |
| Motor Size | 30 HP | 40 HP | 40 HP | 30 HP & 40 HP | 20 HP *2 |
| Material to be used | Bio-Degradable Material / HDPE Resin / Filler (Caco3) | ||||
| Bag Size | 350-900 mm (Max. 600 mm after gusset) | ||||
| Take-Up Tower | 1 set, Roller width 700 mm | ||||
| In-Line Printer |
Flexographic Printing, 1 - 6 colors (to be specified by buyer) For Water based & Solvent based Ink |
||||
| Bobbin change unit | 1 set, for Non-stop operation | ||||
| Bag sealing unit | 1 set, Heat-cutting type | ||||
| Waste recovery unit | 1 set, to reuse the die-cut on-line | ||||
