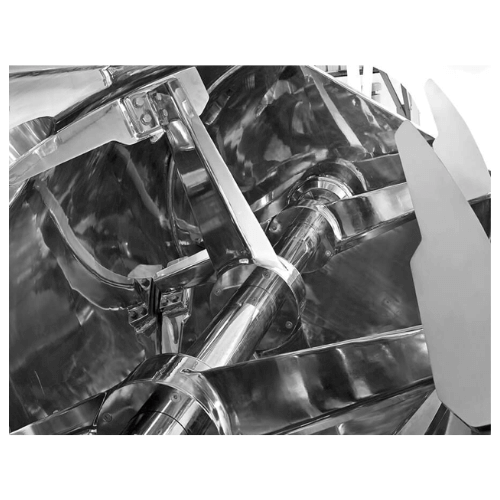

TW-HV Horizontal Cooling Mixer

分類: Material Handling-Mixer

TWIN SCREW INDUSTRIAL CO., LTD.

国: 台湾

電話番号: 886-6-5014056

ファックス: 886-6-5013805

連絡先: Roger Su

お問い合わせ

Vertical installation of motor & reducer saves space;

Adopts fixed rev. Speed AC motor drive suitable for general material mixing. Two sides of mechanical seal adopts compressed ai purge seal design.

Model	Tank Capacity	Power	Machine Size	Machine Weight
TW-HV1000	1000 L	20HP．4P	3600×1020×1750 mm	1500 kg
TW-HV1500	1500 L	20HP．4P	2150×1200×2650 mm	2850 kg
TW-HV2500	2500 L	30HP．4P	2300×1450×3500 mm	3250 kg
TW-HV3500	3500 L	40HP．4P	2500×1550×3600 mm	3500 kg
TW-HV5000	5000 L	60HP．4P	4000×2500×2200 mm	5500 kg
