モデル | 国際サイズ | 理論ショットボリューム | クランプ力 | タイバーとの間のスペース | 型開きストローク |
400MBE | 4000H-2045 | 1502 | 400 | 700x700 | 1500 |
500MBE | 5000H-2862 | 1910 | 500 | 780x780 | 1750 |
600MBE | 6000H-4462 | 2767 | 600 | 880x880 | 1800 |
850MBE | 8500H-4971 | 3613 | 850 | 1000x1000 | 2000 |
1050MBE | 10500H-7746 | 4752 | 1050 | 1100x1100 | 2350 |
1450MBE | 14500H-9614 | 7433 | 1450 | 1300x1300 | 2460 |
1850MBE | 18500H-15369 | 11486 | 1850 | 1600x1600 | 2600 |
2300MBE | 23000H-25143 | 18158 | 2300 | 1800x1800 | 2800 |
DIRECT CLAMPING FORCE BUILT UP BY MULTIPLE CYLINDERS

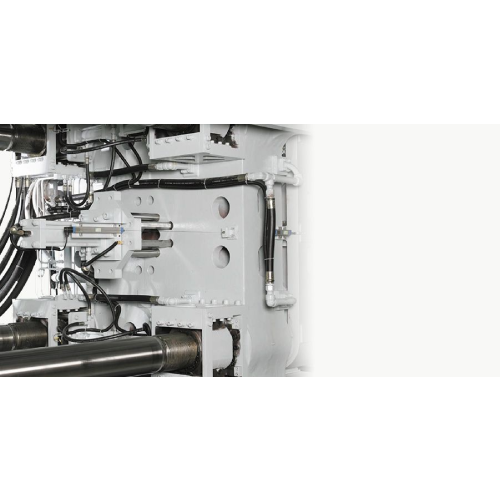

The actuator of the clamping force is installed on the fixed platen of the conventional two platens injection molding machine. The design of the MBE model has four sets of traveling cylinders inside of the movable platen to close the mold and to build up the clamping force at the center of the platen. Thus, the force is distributed evenly on the platen and creates zero deflection when the injection force activates. The clamping force makes a full release before the mold opens, so there is no issue of failed opening such as a mechanical deformation of the toggle under the conditions of a long cycle. The standard feature of the proportional valve with LVDT feedback achieves high precision of mold open-end position.
開口部のストロークと金型の厚さに対する柔軟な変更
長い開口ストロークは、より長い厚みを必要とする金型に高い柔軟性を提供するために利用可能であり、必要に応じて拡張することができます。最大金型高さ、昼光、またはエジェクタストロークは、特別なリクエストにより変更できます。固定プラテンの反対側のコーナーにデュアルトラバースシリンダーを取り付けて、乾燥サイクルを短縮し、パージ領域とノズルへのアクセスを容易にします。
