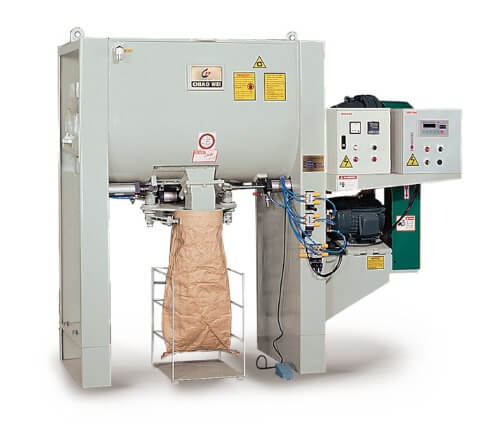

Horizontal Blending Machine & Weighing Device

分類: HORIZONTAL DRYINIG / BLENDING MACHINE

CHIAO WEI MECHANIC CO., LTD.

国: Taiwan

電話番号: 886-4-2630-2845

ファックス: 886-4-2630-2846

連絡先: Ms. Chen/ Mr.Sky Jih

お問い合わせ

The industrial dryer machine is suitable for mixing and storage of industry plastic raw materials in particles or powders. It is suitable for equipment of the front or back process in extrusion. And it is also suitable for two kinds of additives pre-mixing, so that can makes materials well-mixing more quickly and efficiently. It can achieved very good mixing effect by blending staggered blades.

Model	Tank Vol.	Blending Capacity/Time	Motor	Electronic Heater (KW)
CW-D100	200L	60-100kg	2HP	6-10KW
CW-D200	400L	100-200kg	3HP	8-12KW
CW-D300	600L	150-300kg	5HP	8-12KW
CW-D400	800L	200-400kg	5-7.5HP	10-22KW
CW-D600	1200L	400-600kg	7.5HP	10-22KW
CW-D700	1500L	500-700kg	10-15HP	10-22KW
CW-D1000	2000L	700-1000kg	15-20HP	24-32KW
CW-D1200	2400L	800-1200kg	15-20HP	24-32KW
CW-D1500	3000L	1000-1500kg	20-25HP	24-32KW
CW-D2000	4000L	1500-2000kg	25-30HP	32-45KW
CW-D2500	5000L	2000-2500kg	30HP	32-45KW
CW-D3000	6000L	2500-3000kg	30-40HP	40-56KW
CW-D5000	10000L	4500-5000kg	40-60HP	64-80KW
*Above sizes are for reference only.
