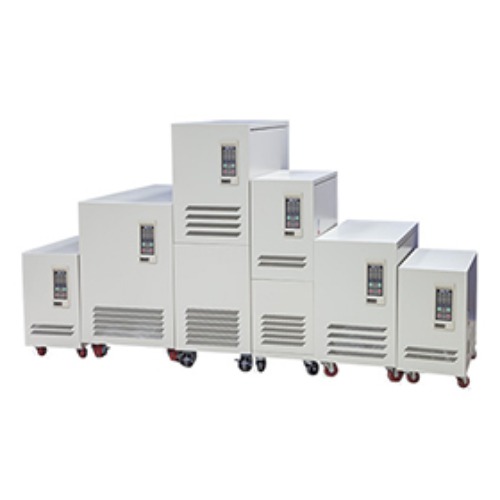

E-2 Super-Smart AVR / Stabilizer (PS)

分類: Three phase Automatic Voltage Regulator / Stabilizer

CNE ELECTRICAL CO., LTD.

国: Taiwan

電話番号: 03-341-1860

ファックス: 03-341-1826

連絡先: Mr. Allen Chen

お問い合わせ

Intelligently logic regulation
Self-detecting function
Powerful overload 150% ability
With bypass device and protect function
Big range high/low voltage protect device
Phase failure, instant black-out, short circuit protection
Start over voltage protection
Independent regulation and protection design
Full series with the same control system and multi anti-mistake circuit design
Front panel with LED indicator displayed AVR regulating status
With O/P voltmeter to monitor O/P voltage
With dip sw. and easy for setting
Electronics double circuitry switch design
Separated voltage regulation design, 3 phase unbalance 100%
Taiwan patent no. 160215, 162577
China patent no. 125595, 390066
Double overload and short circuit protection

Model No. (PS-)

310
X/N/Y

315
X/N/Y

320
X/N/Y

330
X/N/Y

345
X/N/Y

360
X/N/Y

375
X/N/Y

3100
X/N/Y

3120
X/N/Y

3150
X/N

3180
X/N

3200
X/N

Capacity (KVA)

100

120

150

180

200

Voltage

X2 : 3ψ3W 220V series N1 : 3ψ4W 110/190V series
X3 : 3ψ3W 380V series N2 : 3ψ4W 220/380V series (Indicate phase voltage)
X4 : 3ψ3W 415V series N3 : 3ψ4W 220/380V series (Indicate line voltage)
Y : Input 3ψ3W 380V, Output 3ψ3W 220V (with auto type transformer)
Y0 : Y type with special specification
Y2 : Input 3ψ3W , Output 3ψ4W (with isolated type transformer)
Y5 : Y2 type with special specification

Input Range

Nominal Voltage: 15% (±20%～±40% can be customized) Frequency: 50/60Hz±5%

Output Accuracy

≦1%

Power Factor

0.95～1

Efficiency

≧98%

Response Time

＜0.1 Second

Waveform Distortion

No distortion
