High Speed Courier Bag with Pocket Making Machine

分類: シーリングおよび切断機

MING JILEE ENTERPRISE CO., LTD.

国: 台湾

電話番号: 886-6-5783420

ファックス: 886-6-5783347

連絡先: Chris Chang

お問い合わせ

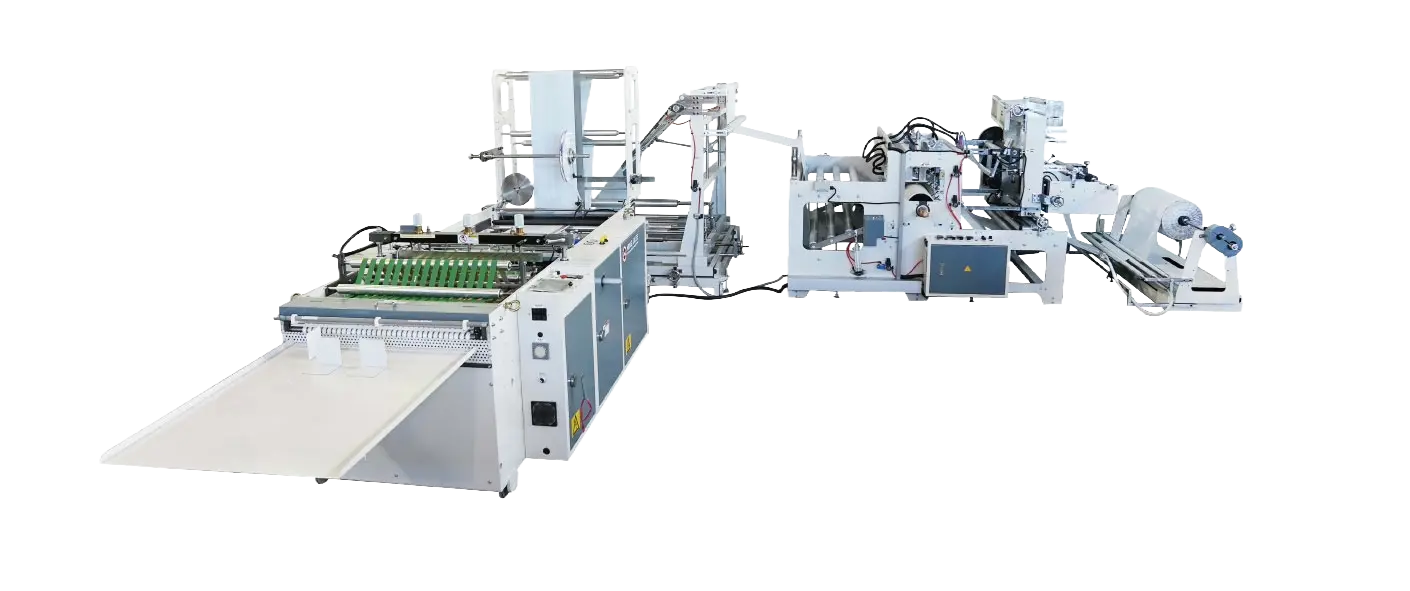

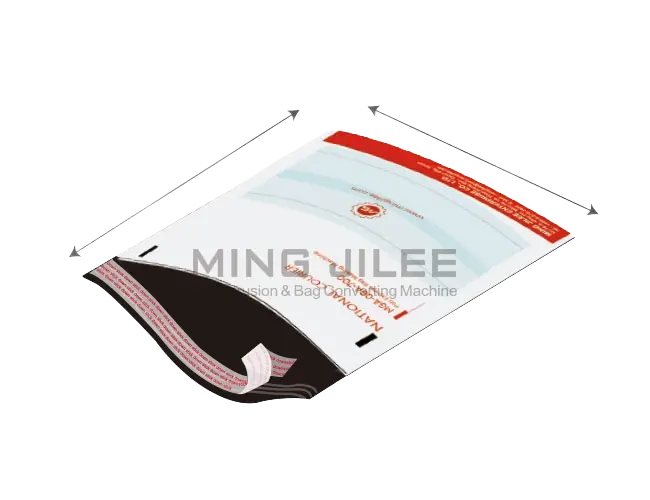

The MGA-06A-800 is a high-speed courier bag making machine with pocket, producing plastic courier pockets including PE, DHL, and TNT type bags from LDPE flat material. A Japan-made servo motor gives precise bag size control, and an AC motor with inverter speed control manages the dancing roll station for stable film feeding.

Optional equipment allows hot melt glue application to courier bags, and an auto conveyor lets operators pack finished bags directly off the line. Optional technology is also available for producing security bags, extending the machine to more sensitive courier applications.

Model	MGA-06A-800
General Machine Specifications
Machine Dimension	6,500 (L) x 5,700 (W) x 1,960 (H) mm
Machine Weight	4,930 kg
Required power	15 kw
Machine Performance
Feed Material	LDPE flat material
Single layer thickness	0.02 - 0.1 mm
Effective bag width	75 - 650 mm
Effective bag length	Max. 750 mm
Output	60 - 180 pcs/min (depend on thickness and size)
