大型管材シュレッダー - Jシリーズ

分類: シュレッダー

GENOX RECYCLING TECH CO., LTD.

国: China

電話番号: 86-20-66851345

連絡先: Jaime Jiang

お問い合わせ

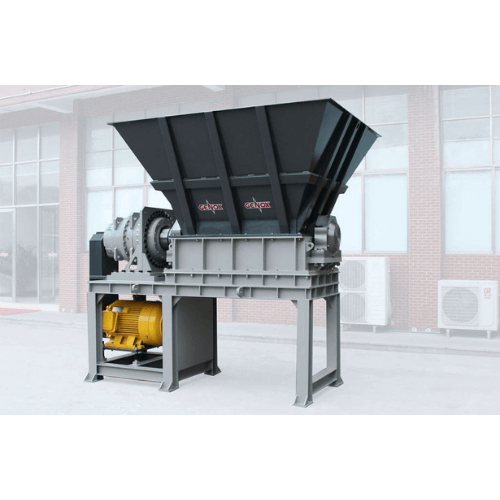

YS series pre-shredders are designed for processing high strength and tough materials with high levels of contamination. The machine pre-shreds compressed and baled material into fractions for further process.
Film type materials are opened up to enable effective cleaning and washing.
YS shredders are normally positioned at the front of a film washing system, though the machines can operate as stand-alone units for in-house recycling as well.

Slow Speed High Torque Shredding Principle.
Low Dust and Noise Operation.
Low Maintenance Design.
Durable shredding blades manufactured from high quality steels are suitable for shredding tough materials.

Advanced Adjustable Sealing System prevents product migration and ensures long bearing service life.
Stand Alone Electrical Control Panel with Siemens PLC Control System.
Tested, Approved and Certified to the applicable CE safety standards.

Model	YS1000	YS1300	YS1500
Dimension (L x W x H) (mm)	1200 × 1330 × 1850	1380 × 1170 × 2200	1950 × 3550 × 3820
Hopper Opening (L x H) (mm)	1600 × 1500	1900 × 1500	2100 × 1500
Rotation Diameter (mm)	Φ600	Φ600	Φ600
Operation Length (mm)	1000	1300	1500
Rotation Speed (RPM)	8-16	8-16	8-16
Number of Rotor Knives	20	24	28
Number of Counter Knives	12	14	16
Main Drive (kw)	55	75	90
Weight (kg)	Approx 3900	Approx 4700	Approx 5700
