Belt Type

分類: Loss-In-Weight Feeder

TAIWAN HIGHDREAM INTELLECTUALIZED MACHINERY CO., LTD.

国: Taiwan

電話番号: 04-22515064

ファックス: +886 (4) 22515064

連絡先: Nicole Yang

お問い合わせ

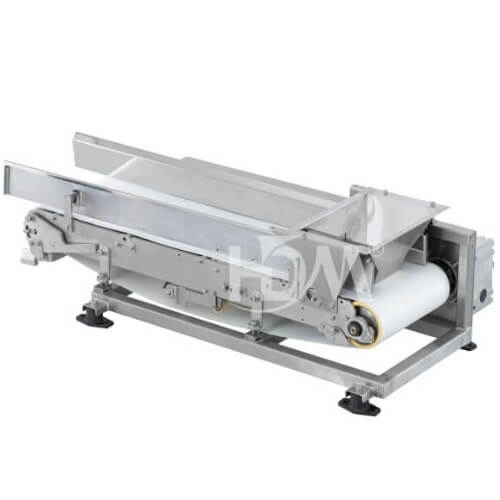

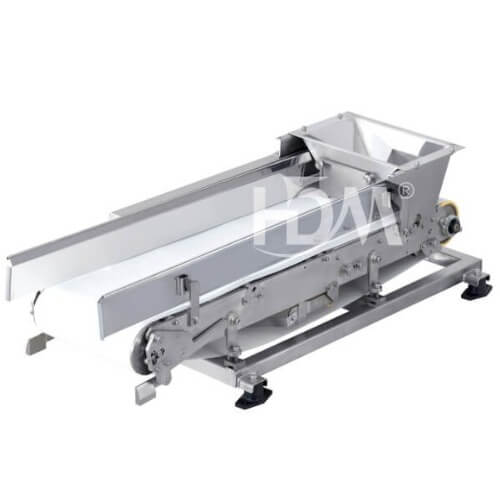

The Belt type loss-in-weight feeder is designed for large and fragile material like fries or nuts. It can satisfy different demands, such as continuous or quantitative feeding. The accuracy it can reach is +-1%. All made of stainless steel.

Open design facilitates cleaning and maintenance.
Satisfy quantitative or continuous even feeding.
All stainless steel construction.
Accuracy accessibility ± 1%.
Disassembled without tools.
7 inches color touch screen.
Double feedback control system

ltem	Belt Type
Model	ZLP-9000-DL
Specification	B-300-O	B-500-O	B-800-O
Flow Rate Range (L/h)	30 - 8000	50 - 10000	50 - 26000
Hopper Sizes (L)	300	500	800
Weighing Range	5	10	20
Net Weight	Approx.120 kg	Approx.170 kg	Approx.200 kg
Length (mm)	1280	1280	1280
Width (mm)	642	846	1146
Height (mm)	385	385	385
Power Supply	AC 220 - 240 V, 50/60 Hz, 1.0 KW
