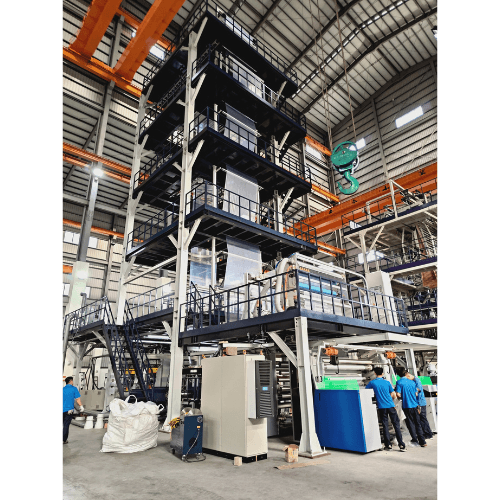

Three-Layer Co-Extrusion Blown Film Machine KS-ML3-95-110-95

Materials & Applications

• Suitable Materials: LLDPE, LDPE, mLLDPE
• End-Use Applications:
  • Lamination films
  • Shrink films
  • Food packaging films

Production Range & Output Performance

• Maximum Film Width: 2200 mm
• Film Thickness Range: 20 – 150 microns
• Maximum Extrusion Output: 800 kg/hr
• Typical Production Condition:2200 mm × 50 microns(Layer ratio: 1 : 1.5 : 1)
• Die Head Diameter: Ø 500 mm
• Extruder Screw Diameter: Ø 95 mm + Ø110 mm+ Ø 95 mm

K-Design Cooling & Film Forming System

• Automatic Air Ring
• IBC (Internal Bubble Cooling) System with Width Control
• 360° Thickness Measurement System

Control & Automation

• Control System: Supervisor System (Integrated HMI Control Platform)
• DOTECO Gravimetric Dosing System with Extrusion Control and Automatic Material Conveying System with 4.0 kW Vacuum Pump

Take-Up, Winding & Downstream Equipment

• Take-Up Unit:Upper oscillating system with automatic positioning horizontal, designed to enhance real winding quality of reels.
• Winding Unit:Dual-side premium fully automatic winder
• Surface Treatment Unit:15 kW surface treatment system (Germany, AFS)
• Static Elimination: Meech International Static elimination system (UK)

Key Advantages

• Three-layer co-extrusion design optimized for lamination, shrink, and food packaging films
• Wide-width 2200 mm configuration combined with high output up to 800 kg/hr
• German-made air ring, IBC, and thickness measurement systems for stable film formation
• Intelligent gravimetric dosing and automation reduce process variation
• Reliable design suitable for long-term continuous production
