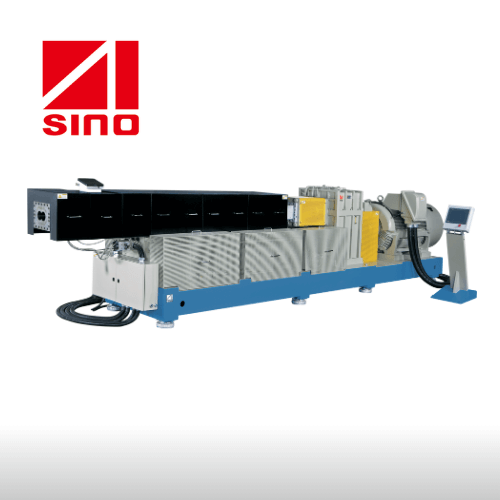

Co-Rotating Twin Screw Extruders-PSM92, 92A

分類: 押出機

SINO-ALLOY MACHINERY INC.

国: Taiwan

電話番号: 886-3-4838475

ファックス: 886-3-4839052

連絡先: Yi-Ko Chen/Mike Chen

お問い合わせ

The optimization of the PSM92 and PSM112 series resulted in more efficient and durable designs. The PSM92 and PSM112 series have high range production capabilities, and easy operation in reasonable price. All PSM92 and 112 series extruders meet or exceed CE and international safety standards. Sino-Alloy can also design a custom line to meet your specifications.

Model	PSM20		PSM30			PSM50			PSM58			PSM72			PSM92			PSM112
Model	A	B		A	B		A	B		A	B		A	B		A	B		A
Screw speed (RPM)	600	900	350	600	900	350	600	900	350	600	900	350	600	900	350	600	900	350	600
Main motor power (kW)	5.5	16	15	29	43	60	90	130	83	162	241	165	323	479	317	617	812	522	1014
Torque (N.m/screw)	44	85	205	231	228	818	716	690	1132	1289	1278	2251	2570	2541	4325	4910	4308	7121	8037
Screw diameter (mm)	21.7	21.7	31.2	31.2	31.2	50	50	50	57.2	57.2	57.2	72	72	72	92	92	92	110.8	110.8
Center height	1100	1100	1100	1100	1100	1100	1100	1100	1100	1100	1100	1200	1200	1200	1200	1200	1200	1200	1200
L/D ratio (Max)	68	68	68	68	68	68	68	68	68	68	68	68	68	68	64	64	64	56	56
