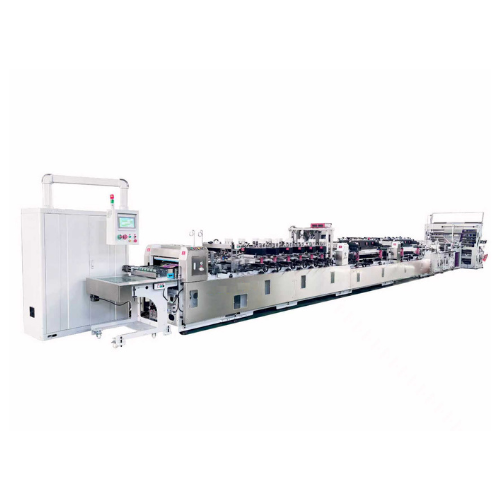

The JL-L-2TZP600 is Rey Long's flagship high-speed, multi-function pouch bag making machine, capable of producing five bag styles — three-side sealing bags, three-side sealing zipper bags, four-side sealing bags, stand-up doypack pouches (with or without zipper) — on a single platform. Built with a 10 mm steel-plate frame, full servo-motor control (Panasonic), and a PLC touch-screen interface, the machine delivers positional accuracy of ≤0.3 mm and speeds up to 220 pcs/min for three-side sealing bags. Zipper sealing is achieved via ultrasonic wave technology, eliminating heat damage to film. Optional double-unwinding and non-stop accumulator modules maximize uptime for continuous production.
General Food Packaging
Retort Packaging
Frozen Packaging
Tea Packaging
Coffee Packaging
Rice Packaging
Spouted Pouch Packaging
Garment Packaging
Facial Mask Packaging
Pet Food Packaging
Liquid Packaging
Anti-static Packaging
Medical Packaging
Digital Printing Packaging
| Specification | Value |
|---|---|
| Model | JL-L-2TZP600 |
| Speed (3-side seal) | 35–220 pcs/min |
| Speed (3-side seal + zipper) | 35–150 pcs/min |
| Speed (Doypack) | 35–120 pcs/min |
| Bag Types | Three-side seal / Three-side seal + zipper / Four-side seal / Doypack / Doypack with zipper |
| Applicable Material | Heat-seal laminated film |
| Film Thickness | 30–180 μm |
| Max Web Width | 1240 mm (patch web: 150 mm) |
| Max Web Roll Diameter | φ600 mm (patch web: φ600 mm) |
| Bag Width (3-side seal) | 100–580 mm |
| Bag Length | 50–420 mm (skip function up to 6× for longer bags) |
| Bottom Seal Width | 5–60 mm |
| Zipper Width | 13 mm |
| Positional Accuracy | ≤0.3 mm |
| Vertical Sealing | 4 groups heating + 2 groups cooling |
| Horizontal Sealing | 4 groups heating + 2 groups cooling |
| Zipper Sealing | Ultrasonic wave, 1 group |
| Temperature Range | Indoor – 300 °C |
| Power Supply | 220 V / 3P / 60 Hz, 60 kW |
| Machine Weight | 9,000 kg |
Heat-Seal Lamination Technology
Flexible pouch bags are made from heat-seal laminated films — multi-layer structures such as NY/PE, PET/PE, or AL/PE — where the innermost layer melts and bonds when compressed between heated sealing bars. The JL-L-2TZP600 uses 4 groups of heating bars plus 2 groups of cooling bars for each seal (vertical and horizontal). The cooling groups re-solidify the seal bond under pressure before the bag releases, preventing the still-molten film from deforming. This 4+2 configuration allows the machine to maintain consistent seal strength at high speed, across a temperature range up to 300 degrees Celsius for retort-grade films.
Full-Servo Accuracy and Multi-Format Capability
Every motion axis — film feed, sealing, cutting, and zipper insertion — is driven by an independent Panasonic servo motor with closed-loop position feedback. This allows the machine to achieve 0.3 mm or better positional accuracy on pre-printed films by reading registration marks with photo-eye sensors and correcting the film feed in real time. The same servo architecture enables the machine to switch between five bag formats (three-side seal, three-side seal with zipper, four-side seal, doypack, doypack with zipper) through parameter changes on the PLC touch screen rather than mechanical retooling.
Ultrasonic Zipper Sealing
Zipper bags require a different sealing mechanism for the zipper track itself. Heat-sealing a plastic zipper can distort the interlocking profile, making it difficult to open and reclose. The JL-L-2TZP600 uses an ultrasonic sealing unit for zipper attachment — a transducer vibrates the zipper at high frequency, generating localized frictional heat only at the bond interface rather than across the whole zipper cross-section. This produces a precise, clean seal that preserves the zipper profile at the standard 13 mm zipper width.
