Foot Type Impulse Sealer-WN series、WN-a series

Foot Type Impulse Sealer-WN series、WN-a series
分類: FOOT TYPE SEALER
Applications: 包装 粘着性ポリ袋
Wu-Hsing Electronics Co., Ltd.
Wu-Hsing Electronics Co., Ltd.
国: Taiwan
電話番号: 04-22711498
連絡先: Ms. Lin
お問い合わせ

Wu-Hsing’s Foot Sealers: Impulse sealing: single sealing is for PE, PP, most of plastic materials, Double-sides sealing is ideal for plastic, Alum. Nylon, Kraft paper bags, and Gusset bags. Timer control (0-1.5 sec. or 0-2 sec.), needs longer Congealing time (keep pressing, concreting, cooling, and leveling...)

Direct Heat sealing is ideal for heat-resistant materials: Nylon, Aluminum foil, Cellophane, Sterilization bags… Temperature controlled (0-300 degree C), needs warm up time: 10 minutes +.

By foot operated is easier for user to operate machine by foot while 2 hands hold the bags well operated to make an excellent and perfect sealing.

Wu-Hsing is a manufacturer and designer that offer the top quality various bags Sealers and Vacuum Sealers and best service in Taiwan to whole world.

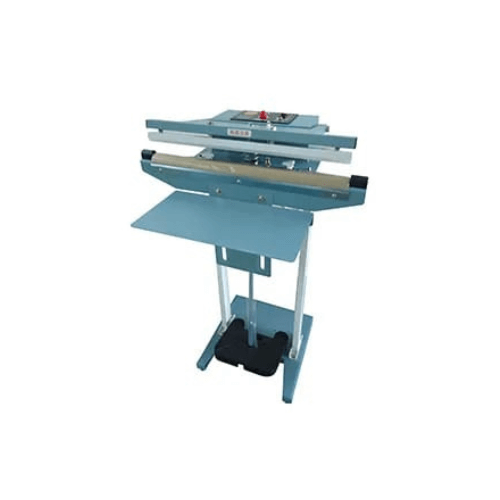

Wu-Hsing brand Foot Sealer made in steel and alum. Casting with powder coating, is ideal for sealing large bags. By foot operated, it is easier for user

to operate machine by foot, 2 hands hold the bags well operated to make an excellent and perfect sealing..

For Impulse sealing, is sealing Timer control. Congealing time is necessary to an excellent and perfect sealing..

*Single sealing: PE, PP, OPP, PVC, POF …plastic materials.

*Double-sides sealing: Alum. Gusset (folded) bags

Optional device: Stainless steel (SUS #304) ,Date Imprinter, 10mm sealing



For Constant heat (direct heat) sealing: ideal for Alum. Nylon, Kraft paper

Optional device: Date Imprinter, Digital Temperature Controller

Specification WN-300 WN-450 WN-600 WN-750 WN-900
Voltage 110V/220V/230V/240V
Power(Watt.) 450W 600W 800W 1000W 1200W
Max. sealing 300*2.7/5mm 450*2.7/5mm 600*2.7/5mm 750*2.7/5mm 900*2.7/5mm
Heating Time 0-1.5 sec.
Max. Temp 250°C
Dimension 38*34*88cm 53*34*88cm 68*34*88cm 83*34*88cm 98*34*88cm
Weight 16KG 18KG 19.5KG 21KG 26.5KG





Specification WN-300a WN-450a WN-600a WN-750a
Voltage 110V/220V/230V/240V 110V/220V/240V 110V/220V/230V/240V 110V/220V/230V/240V
Power(Watt.) 600W 800W 1000W 1200W
Max. sealing 300*5mm 450*5mm 600*5mm 750*5mm
Heating Time 0-1.5 sec. 0-1.5 sec 0-1.5 sec. 0-1.5 sec
Max. Temp 250°C
Dimension 38*34*88cm 53*34*88cm 68*34*88cm 83*34*88cm
Weight 20KG 23KG 27KG 30KG
