分類: Extrusion Tape Line Machine
国: Taiwan
電話番号: 886-6-2451166
ファックス: 886-6-2451133
連絡先: Mr. Lin
お問い合わせ
TLM series is an economical design of extrusion tape line, and low power consumption produces high performance as the main feature.

TLM series is mainly used in PP, HDPE tape line production, it used for weaving by circular loom and flat loom into tubular woven bags, onion bags, FIBC fabrics, tents, and waterproof tarpaulin.

  • Double layer auto filter change and T-die thermal insulation design
  • Melt pump (optional), its function is to maintain the quality and stability of the extrusion
  • Quench take-up unit, with extrusion device, film cooling forming, and water removal system to keep the film even
  • PLC program control & HMI interface, easy to operate and data memorize
  • 5 sets slitting knife with swing device and non-stop design
  • Inverter type and automatic tension control winder, the light-weight design of the tape guide slide achieves power saving performance, and the winding shaft is equipped with a hooking device to facilitate the roll change
  • MAGUIRE blender(optional), and its function is to automatically cut and mix according to the proportion of raw material

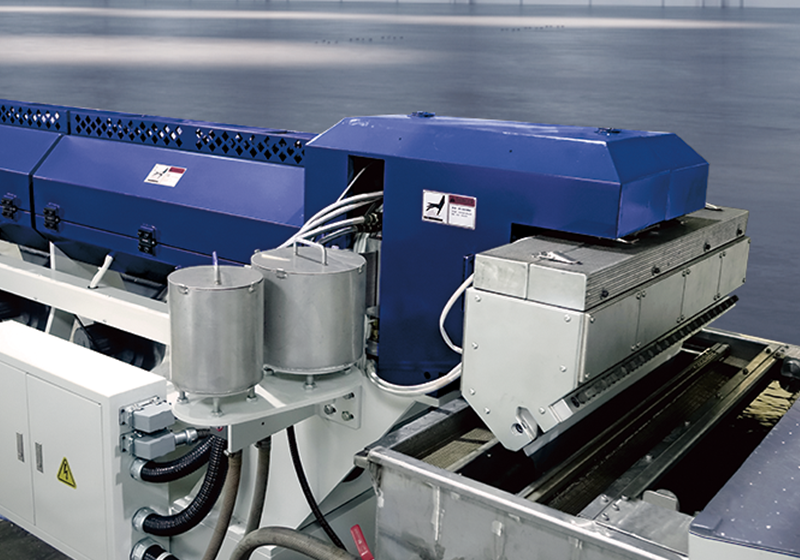

Quench take-up unit, with extrusion device, film cooling forming, and water removal system to keep the film even.



Melt pump (optional), its function is to maintain the quality and stability of the extrusion.



Double layer auto filter change and T-die thermal insulation design.

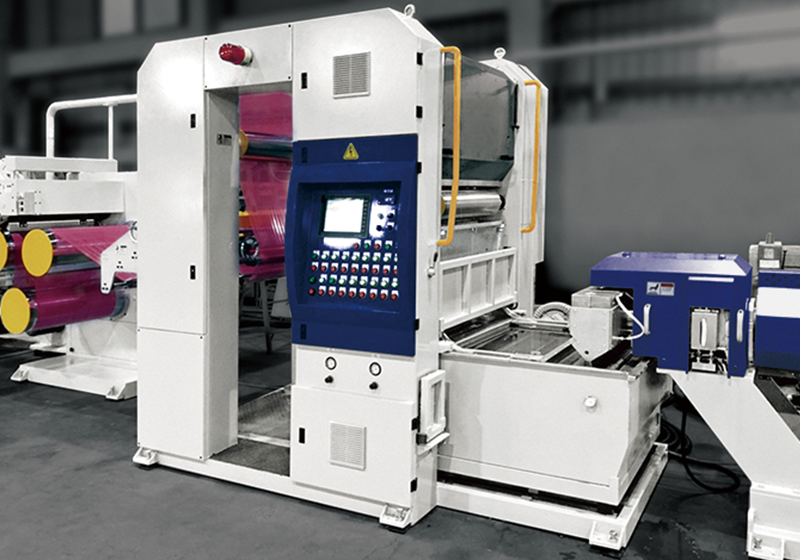

Inverter type and automatic tension control winder, the light-weight design of the tape guide slide achieves power savin


5 sets slitting knife with swing device and non-stop design.


PLC program control & HMI interface, easy to operate and data memorize.


MAGUIRE blender(optional), and its function is to automatically cut and mix according to the proportion of raw materials
