二軸一次破砕機 (プレシュレッダー) - TSシリーズ

分類: シュレッダー

GENOX RECYCLING TECH CO., LTD.

国: China

電話番号: 86-20-66851345

連絡先: Jaime Jiang

お問い合わせ

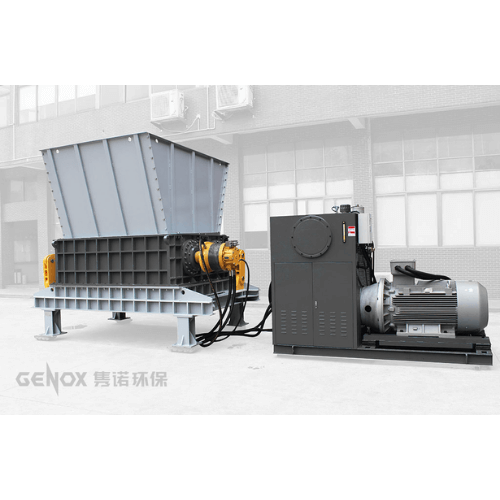

TS Series Two Shaft Shredders are low speed high torque hydraulic driven size reduction machines. The shredding shafts are bi-directional, therefore increasing the cutting efficiency and capacity of the machine whilst maximizing knife utilization.

Slow Speed High Torque Shredding Principle
Low Dust and Low Noise Operation
Rugged Low Maintenance Design
Strong Blades manufactured from high quality alloy steels are suitable for shredding tough materials

Modular Chamber Design with split endplates and bearing housings enables quick access to key components
Advanced Adjustable Sealing System prevents product migration and ensures long bearing service life
Stand Alone Electrical Control Panel with Siemens PLC Control System
Tested, Approved and Certified to the applicable CE safety standards

Model	TS1600	TS2000
Dimension (L x W x H) (mm)	3750 × 2920 × 3200	4150 × 2920 × 3200
Hopper Opening (L x H) (mm)	1600 × 1600	2000 × 1600
Discharge Height (mm)	470	470
Rotation Diameter (mm)	Φ790	Φ790
Operation Length (mm)	1600	2000
Rotation Speed (RPM)	0~22	0~22
Number of Rotor Knives	154	192
Number of Counter Knives	24+26+2+4+2	30+32+2+4+2
Main Drive - Hydraulic (kw)	160	220
Weight (kg)	Approx 19000	Approx 22000
